Damper Puller / Installer

Effortlessly removes and installs your harmonic damper. The power
puller kit comes with everything needed to remove or install a
harmonic damper. The hydraulic ram has a 1/2 inch hole all the way
through it, which allows it slip over a special heat treated stud that is
screwed into the crankshaft snout. The studs are threaded 1/2-20 (big
block Chevy) and 7/16-20 (small block Chevy and adapters). The
power ram has two flanges on it, one on each end. The pull flange has
slots for bolts to pass through. The other flange is solid, to push the
damper on. To remove a damper, simply screw the special stud into
the crankshaft and slip the power unit over the stud, put the jam nut on
the stud and tighten it to the ram. Then install bolts through the flange
into the damper. Now apply pressure from the hydraulic pump that is
supplied with the kit and the damper comes right off. To install a
damper, slip the power unit over the stud with the push flange against
the damper and tighten the jam nut to the ram. Apply pressure from
the pump and it pushes the damper on. The kit is supplied with either
a 10 ton hand pump or an air over hydraulic pump. The hand pump
setup is great for the occasional user and is ideal for remote locations
where compressed air is unavailable. If you are building a lot of
engines, the air/hydraulic setup is the way to go. It is used by some of
the top Engine Builders and Racing teams in the USA such as Scott
Shafiroff. As with all Webster Industries products, this tool is built to
last. The whole process is fast, easy, saves time (and money), and
makes a tough job simple.

HYDRAULIC DAMPER PULLER / INSTALLER

PRICE LIST

ITEM #

DESCRIPTION

PRICE

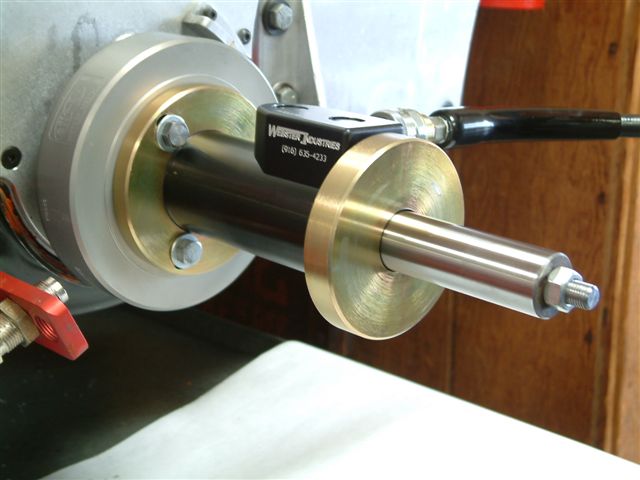

PULL

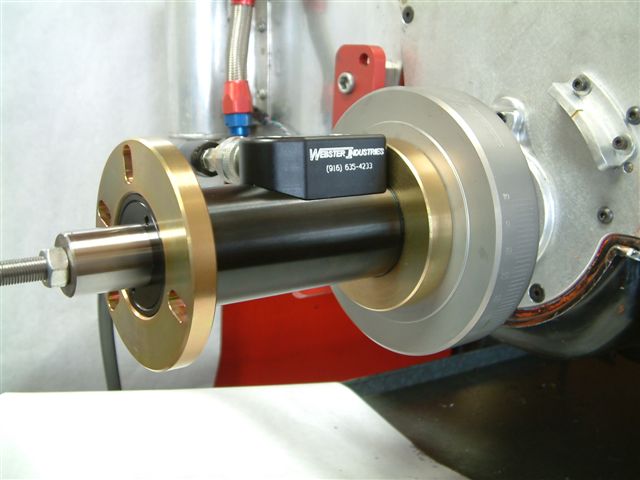

INSTALL

C LICK H ERE to see DEMONSTRATION VIDEO

See Price List Below

916 635-4233

100-001-001	PULLER/INSTALLER ASSY. (INCLUDES: STUD, QUICK COUPLER, PULLER FLANGE, AND PUSH FLANGE)	$800.00
100-001-002	SYSTEM W/ HAND PUMP (INCLUDES: PULLER/INSTALLER ASSY., 2 STAGE HAND PUMP, 6' HOSE, PRESSURE GAUGE, AND (1) BUSHING ADAPTER OF YOUR CHOICE)	$1180.00
100-001-003	SYSTEM W/ AIR/HYDRAULIC PUMP (INCLUDES: PULLER/INSTALLER ASSY., AIR/HYDRAULIC PUMP, 6' HOSE, PRESSURE GAUGE, AND (1) BUSHING ADAPTER OF YOUR CHOICE)	$1180.00
100-002-001	BUSHING ADAPTER, FORD (5/8-18)	$21.89
100-002-002	BUSHING ADAPTER, CHRYSLER (3/4-16)	$21.89
100-002-003	BUSHING ADAPTER, PONTIAC (9/16-18)	$21.89
100-002-004	ADAPTER, REDUCED HOLE (BOLT CIRCLES SMALLER THAN CYLINDER) FOR CHRYSLER BLOWER PULLEY, PONTIAC, ETC.	$63.10
100-002-011	REDUCED BOLT CIRCLE ADAPTER SMALL BORE	$63.10
100-002-005	ADAPTER BOLT KIT (INCLUDES: (3ea) 3/8-16&24 x 1 1/4, 3/8-16&24 x 1 3/4, 3/8-16&24 x 2 1/4)	$14.25
100-002-006	BELT DRIVE SPROCKET PULLER	$140.80
100-002-007	ROCKER STUD PULLER ADAPTER	$147.95
100-002-009	SYSTEM BUSHING ADAPTER: (5/8-18)	$21.89
100-003-001	AIR/HYDRAULIC PUMP	$412.50
100-003-002	2 STAGE HAND PUMP	$412.50
100-003-003	6' HYDRAULIC HOSE	$71.50
100-003-004	PRESSURE GAUGE	$38.45
100-003-005	QUICK COUPLER	$42.85
100-003-006	NUT (FOR STUD) 7/16-20	$3.85
100-003-007	NUT (FOR STUD) 1/2-20	$3.85
100-003-008	STUD 1/2-20 - 7/16-20	$32.81
100-003-009	STUD 1/2-20 - 1/2-20	$32.81
100-003-010	STUD LS1 16mm	$53.90
100-003-011	ROCKER STUD PULLER ADAPTER NUT 3/8	$29.55
100-003-012	ROCKER STUD PULLER ADAPTER NUT 5/16	$29.55
100-003-014	STUD 1/2-20 - 3/4-16	$53.90
100-003-015	1/4 PIPE TEE	$6.05
100-002-010	3 Arm Adapter (LS1) (Ford Mod)	$291.50
100-002-055	Large DIA 3 Arm Adapter, fits GM LT5. Includes PUSH BUSHING,16.7 LONG STUD X 16MM X 2 THREAD, 1.250 LONG SPACER AND RAM RETURN STAND.	$325.00
